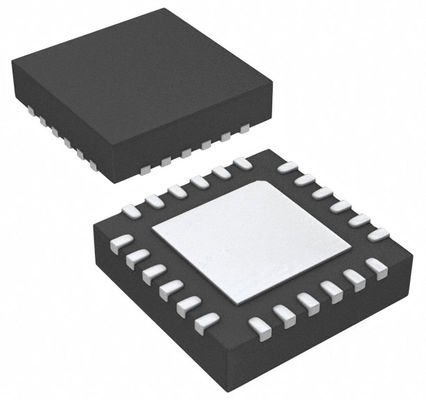

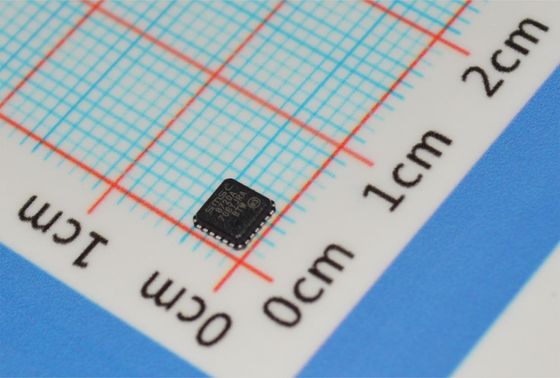

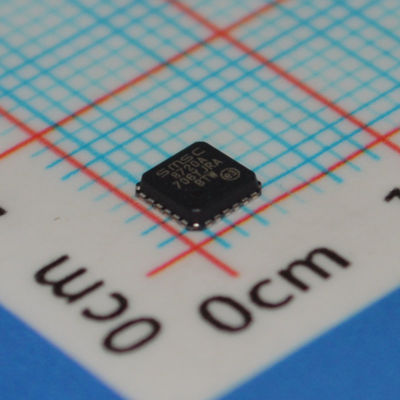

LAN8720A 10/100Mbps Ethernet PHY 3.3V RMII Interface HP Auto-MDIX 25MHz XTAL -40°C to +85°C

LAN8720A

Highlights

• Single-Chip Ethernet Physical Layer Transceiver (PHY)

• Comprehensive flexPWR® Technology

- Flexible Power Management Architecture

- LVCMOS Variable I/O voltage range: +1.6V to +3.6V

- Integrated 1.2V regulator

• HP Auto-MDIX support

• Miniature 24-pin QFN/SQFN lead-free RoHS compliant packages (4 x 4mm).

Target Applications

• Set-Top Boxes

• Networked Printers and Servers

• Test Instrumentation

• LAN on Motherboard

• Embedded Telecom Applications

• Video Record/Playback Systems

• Cable Modems/Routers

• DSL Modems/Routers

• Digital Video Recorders

• IP and Video Phones

• Wireless Access Points

• Digital Televisions

• Digital Media Adapters/Servers

• Gaming Consoles

• POE Applications (Refer to Application Note 17.18)

Key Benefits

• High-Performance 10/100 Ethernet Transceiver- Compliant with IEEE802.3/802.3u (Fast Ethernet)- Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)- Loop-back modes- Auto-negotiation- Automatic polarity detection and correction- Link status change wake-up detection- Vendor specific register functions- Supports the reduced pin count RMII inter face

• Power and I/Os- Various low power modes- Integrated power-on reset circuit- Two status LED outputs- Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II- May be used with a single 3.3V supply

• Additional Features- Ability to use a low cost 25Mhz crystal for reduced BOM

• Packaging- 24-pin QFN/SQFN (4x4 mm) Lead-Free RoHS Compliant package with RMII

• Environmental- Extended commercial temperature range (0°C to +85°C)- Industrial temperature range version avail able (-40°C to +85°C)

Information

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
