TLP152
Features
Buffer logic type (totem pole output)
Output peak current: ±2.5 A (max)
Operating temperature: -40 to 100
Supply current: 3.0 mA (max)
Supply voltage: 10 to 30 V
Threshold input current: 7.5 mA (max)
Propagation delay time: tpHL = 190 ns (max), tpLH = 170 ns (max)
Common-mode transient immunity: ±20 kV/µs (min)
Isolation voltage: 3750 Vrms (min)
Safety standards
UL-approved: UL1577, File No.E67349
cUL-approved: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN60747-5-5, EN60065 or EN60950-1 (Note 1)
: EN62368-1 (Pending) (Note 1)
CQC-approved: GB4943.1, GB8898 Thailand Factory
Applications
• Plasma Display Panels (PDPs)
• Industrial Inverters
• MOSFET Gate Drivers
• IGBT Gate Drivers
Description

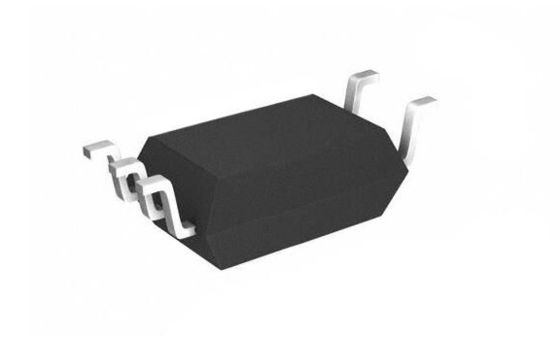

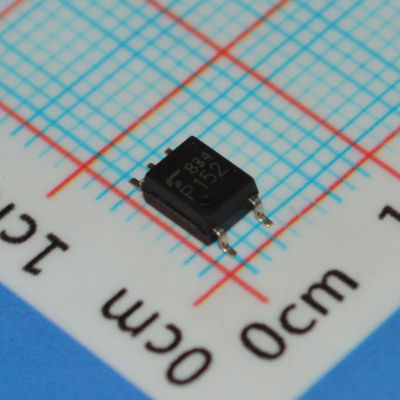

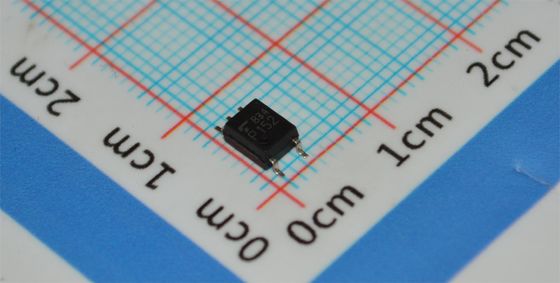

The TLP152 is a photocoupler in an SO6 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. The photodetector IC chip has an internal shield to provide a high common-mode transient immunity of ±20 kV/µs and thus superior noise immunity between the input and output pins. The TLP152 has a totem-pole output that can both sink and source current. It is suitable for directly driving a small IGBT or power MOSFET.
Information
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
|
|
|
Technology
|
|
|
|
Number of Channels
|
|
|
|
Voltage - Isolation
|
|
|
|
Common Mode Transient Immunity (Min)
|
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
|
|
|
Pulse Width Distortion (Max)
|
|
|
|
Rise / Fall Time (Typ)
|
|
|
|
Current - Output High, Low
|
|
|
|
Current - Peak Output
|
|
|
|
Voltage - Forward (Vf) (Typ)
|
|
|
|
Current - DC Forward (If) (Max)
|
|
|
|
Voltage - Output Supply
|
|
|
|
Operating Temperature
|
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
6-SOIC (0.179", 4.55mm Width), 5 Leads
|
|
|
Supplier Device Package
|
|
|
|
Approval Agency
|
|
|
|
Base Product Number
|
|
Drawing
