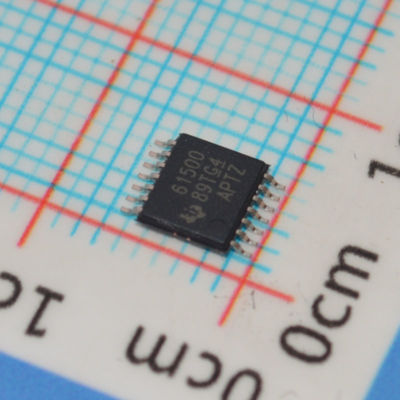

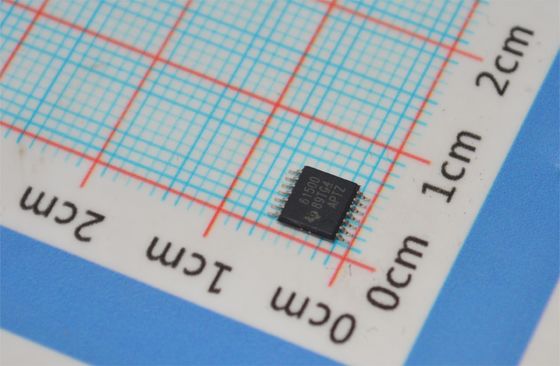

TPS61500PWPR 5V 1.2A Boost Converter 2.5-5.5V Input 95% Efficiency 1MHz 14-HTSSOP -40°C to +85°C

TPS61500PWPR

Features

• 2.9-V to 18-V Input Voltage Range

• 3-A, 40-V Internal Power Switch– Four 3-W LEDs From 5-V Input– Eight 3-W LEDs From 12-V Input

• High-Efficiency Power Conversion: Up to 93%

• Frequency Set by External Resistor: 200 kHz to 2.2 MHz

• User-Defined Soft Start Into Full Load

• Programmable Overvoltage Protection

• Analog and Pure PWM Brightness Dimming

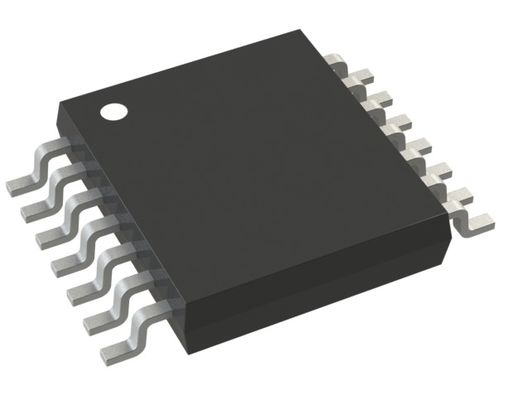

• 14-Pin HTSSOP Package With PowerPAD™

Applications

• Monitor Backlight

• 1-Wor3-W High-Brightness LED

Description

The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V or 12-V power rails. Vin 5 V PWM C4 C5 R4 1 The LED current is set with an external sensor resistor R3, and the feedback voltage that is regulated to 200 mV by current mode PWM (pulse width modulation) control loop, as shown in Typical Application Circuit. The device supports analog and pure PWM dimming methods for LED brightness control. Connecting a capacitor to the DIMC pin configures the device to be used for analog dimming, and the LED current varies proportional to the duty cycle of an external PWM signal. Floating the DIMC pin configures the device for pure PWM dimming with the average LED current being the PWM signal's duty cycle times a set LED current. The device features a programmable soft-start function to limit inrush current during start-up, and it has other built-in protection features, such as pulse by-pulse overcurrent limit, overvoltage protection, and thermal shutdown. The TPS61500 is available in 14 pin HTSSOP package with PowerPAD.

Information

Drawing
