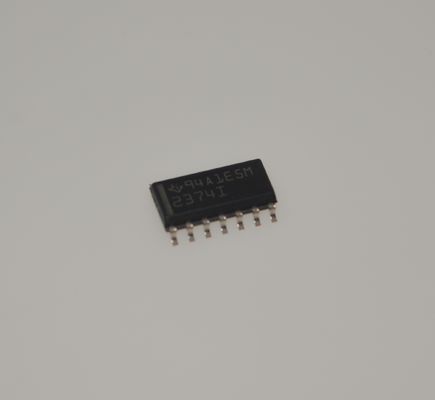

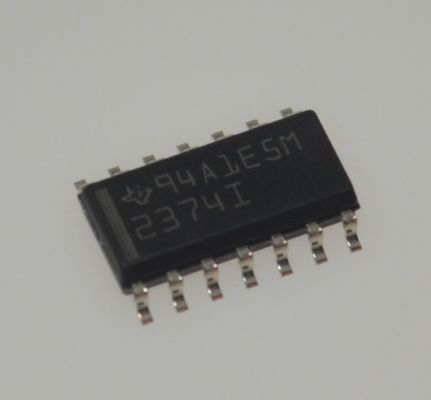

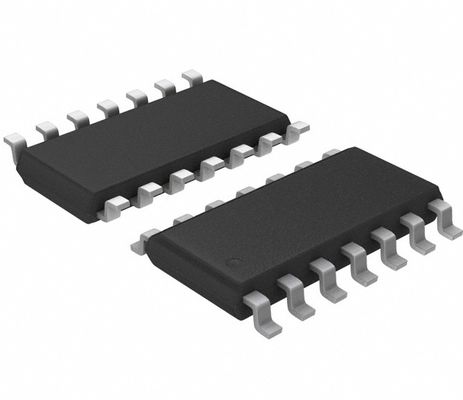

TLV2374IDR Quad RRIO Op Amp with 3MHz GBW 2.4V/µs Slew Rate 2.7-16V Supply Low Noise (19nV/√Hz) Low IQ (950µA/ch) High Drive SOIC-14 -40°C to 125°C for Precision Applications

TLV2374IDR Quad RRIO Op Amp with 3MHz GBW 2.4V/andmicro;s Slew Rate 2.7-16V Supply Low Noise (19nV/andradic;Hz) Low IQ (950andmicro;A/ch) High Drive SOIC-14 -40anddeg;C to 125anddeg;C for Precision Applications

andnbsp;

Features

andbull; Rail-to-Rail Input and Output

andbull; WideBandwidth: 3 MHz

andbull; High Slew Rate: 2.4 V/andmu;s

andbull; Supply Voltage Range: 2.7 V to 16 V

andbull; Supply Current: 550 andmu;A/Channel

andbull; Low-Power Shutdown Mode

andnbsp; andndash; IDD(SHDN): 25 andmu;A/Channel

andbull; Input Noise Voltage: 39 nV/andradic;Hz

andbull; Input Bias Current: 1 pA

andbull; Specified Temperature Range:

andnbsp; andndash; andminus;40anddeg;C to +125anddeg;C (Industrial Grade)

andbull; Ultra-Small Packaging:

andnbsp; andndash; 5-or 6-Pin SOT-23 (TLV2370, TLV2371)

andnbsp; andndash; 8-or 10-Pin MSOP (TLV2372, TLV2373)

andnbsp;

Applications

andbull; White Goods

andbull; Handheld Test Equipment

andbull; Portable Blood Glucose Systems

andbull; Remote Sensing

andbull; Active Filters

andbull; Industrial Automation

andbull; Battery-Powered Electronics

andnbsp;

Description

The TLV237x single-supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 andmu;A. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (andplusmn;8-V supplies down to andplusmn;1.35 V) a variety of rechargeable cells.

The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLC227x in battery-powered applications. The rail-to-rail input stage further increases its versatility. The TLV237x is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance.

All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.

The 2.7-V operation makes the TLV237x compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power microcontrollers available today including TIandrsquo;s MSP430.

andnbsp;

INFORMATION

andnbsp;

Drawing
