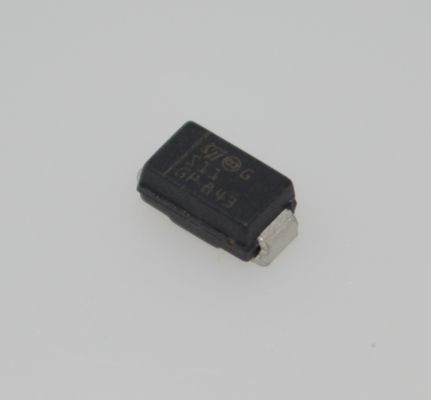

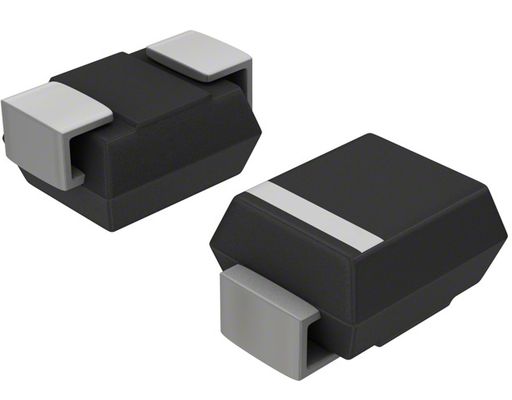

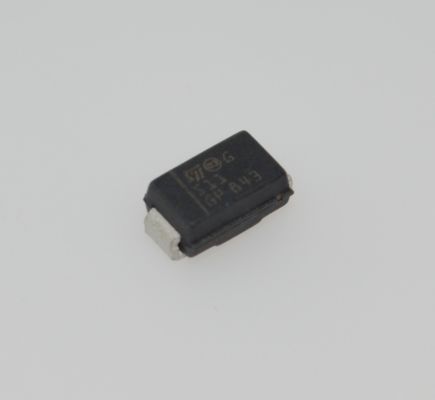

STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175°C TJ SOD-123FL Package

STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175°C TJ SOD-123FL Package

Features

• Negligible switching losses

• High junction temperature capability

• Low leakage current

• Good trade off between leakage current and forward voltage drop

• Avalanche capability specified

• ECOPACK2 halogen-free component

Applications

1:Automotive Electronics

Explanation: As it is AEC-Q101 qualified, it is an ideal choice for automotive applications.

Specific Applications: DC-DC converters in Engine Control Units (ECUs), Body Control Modules (BCMs), lighting systems, infotainment systems, and low-voltage auxiliary power supplies in electric/hybrid vehicles.

2:Industrial Electronics

Explanation: Its wide junction temperature range allows it to adapt to harsh industrial environments.

Specific Applications: Power supplies for Programmable Logic Controllers (PLCs), sensors, motor drive control boards, and low-voltage power supplies in industrial automation equipment.

3:Consumer Electronics & Computing

Explanation: Its high efficiency and small package make it suitable for space-constrained devices that focus on energy efficiency.

Specific Applications: Power adapters for laptops, internal DC-DC power supplies in desktops, server power supplies, and power boards for TVs and gaming consoles.

4:Communication Equipment

Explanation: Its fast switching characteristic is crucial for efficient Switch-Mode Power Supplies (SMPS).

Specific Applications: Power units for network switches, routers, base stations, and other telecommunications infrastructure.

Description

Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

Packaged in SMA, SMA Flat, SMA Flat Notch,or SMB, this diode is ideal for use in lighting and telecom power applications.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
